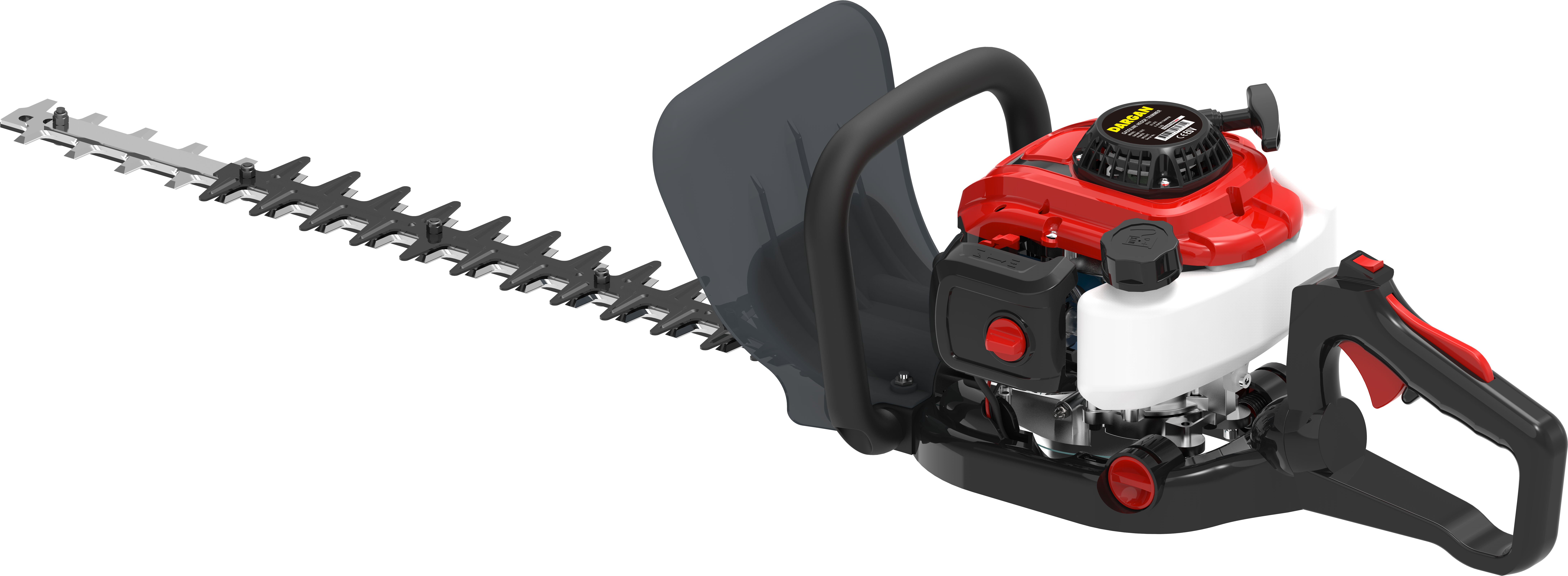

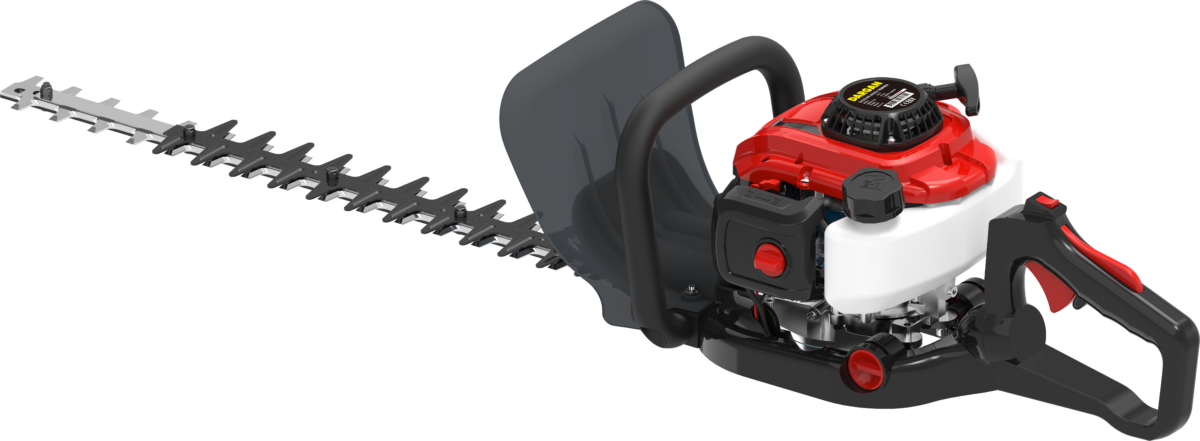

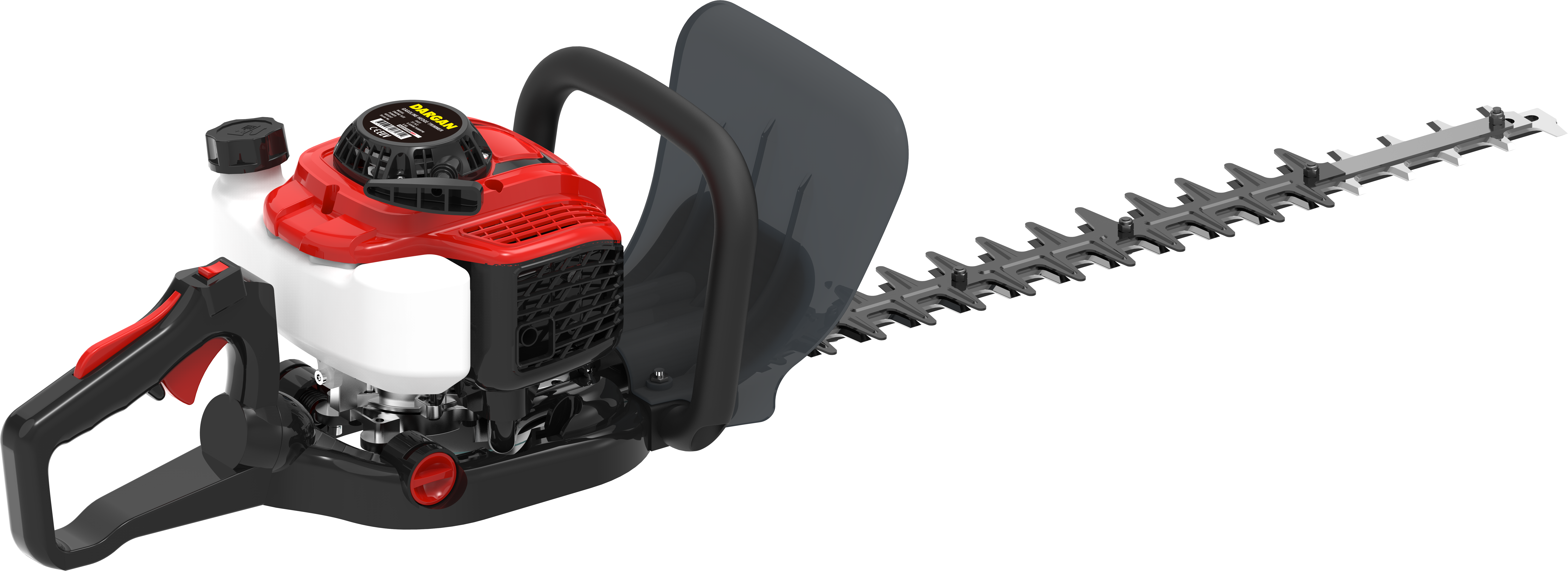

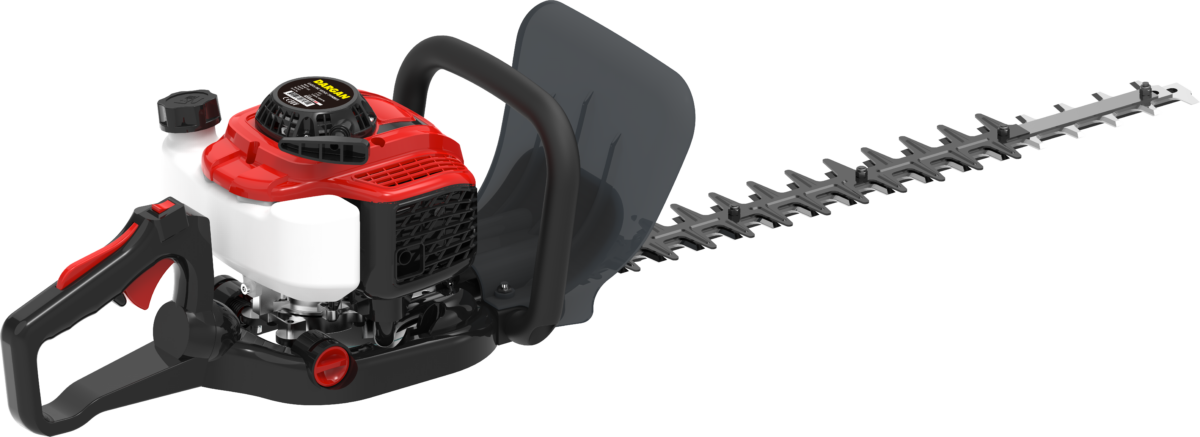

Dargan 22.5cc 2-Stroke Hedge Trimmer

DG22 Hedge Trimmer TT-HT230H
Model no. DG22
Engine type TT-1E32F-2(air-cooled, 2-stroke)
Equipment mobility Hand-held
Engine displacement 22.5 m³
Maximum engine power 0.65 kw
Engine speed 7500 r/min
Engine idling speed 3000±300 r/min
Fuel Tank Capacity 580 ml
Spark plug Champion CJ6Y
Carburetor Diaphragm type
Petrol and oil mix ratio For the first 10 hours of machine use, please use a petrol/oil
mixture ratio of 25:1, and after 10 hours, please use a petrol/oil
mixture ratio of 40:1.
Oil feeding system Automatic pump with adjuster
Blade lengh 700 mm
Cutting lengh 550 mm
Mass(with empty tank) 6 kg
Guaranteed sound power level, LWA (2000/14/EC) LwA: 111 dB(A)
Tested sound pressure level, LPA (2000/14/EC) LpA: 105.4 dB(A), k=3 dB(A)
Vibration at Front Handle A front_hv, eq: 5.259 m/s², k=1.5 m/s²
Vibration at Rear Handle A rear_hv, eq: 4.938 m/s² , k=1.5 m/s²
