Specifications FS175
Max. Cutting depth – 190 mm (7,4″)
Blade diameter – 500 mm (19,6″)
Shaft size – 25,4 mm (1″)
Water tank – 25 Liter (6,6 gal)
Engine – Honda GX200 | KOHLER Motor CH440
Engine power (net power) – 13 HP / 9,5 kW (11,8 HP / 8,7 kW) | 14 HP / 10,5 kW (12,7 HP / 9,4 kW)
Shaft speed – 2.300 min-1
Feed motion – Push
Cutting depth adjustment – Handwheel
Power transmission – V-Belt Kit
Hand Arm Vibrations – 4,5 m/s2 | 2,2 m/s2
Dimensions (L x W x H) – 1.220 x 520 x 1.100 mm
Weight – 128 kg (282 lbs) | 130 kg (287 lbs)
Golz FS125 Floor Saw
£1,643.00 ex VAT
Clean-It Everyday Cleaner
£8.15 – £30.75 ex VAT
Golz FS175 floor saw
£2,071.00 ex VAT
TECH DATA TABLE
Blade-Ø 500mm (19,6″)
Cutting depth 190 mm (7,4″)
• Adjustable anti vibration handles for operators comfort
• Cutting depth adjustment by handwheel

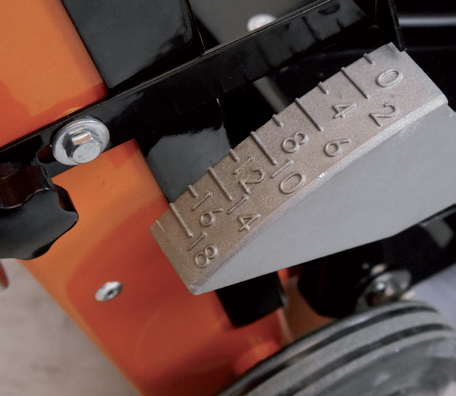

• Cutting depth indicator
• Front cutting guide
• Parking brake
• Lifting frame
• 25 Liter water tank, easy to fill
• Big rear wheels for good chassis clearance
1 in stock
Description
Additional information
| Weight | 128 kg |
|---|---|
| Dimensions | 122 × 52 × 110 cm |
