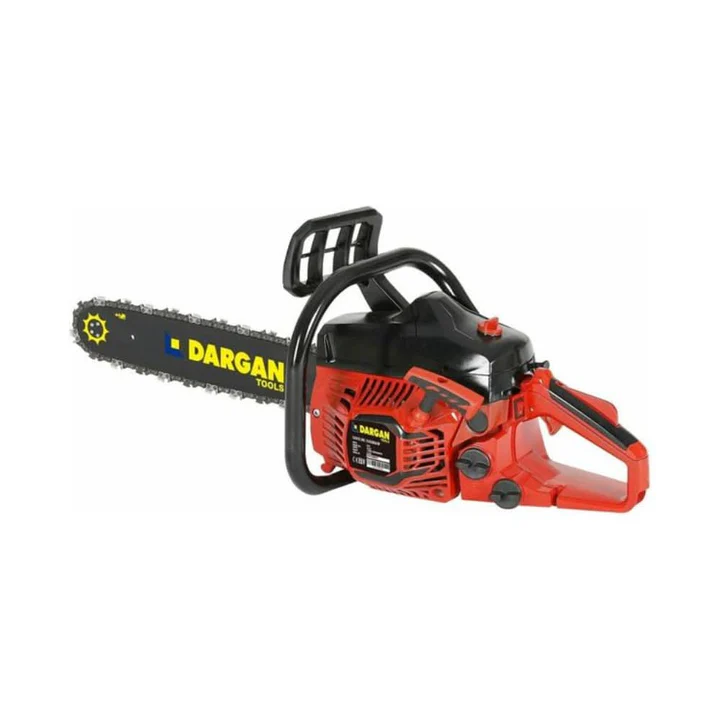

Dargan 16” 38.2 CC 2-Stroke Petrol Chainsaw

Dargan 16” 38.2 CC 2-Stroke Petrol Chainsaw DG13
Model no. TT-CS3800
Engine type TT-1E39F-1 (air-cooled, 2-stroke)
Equipment mobility Hand-held
Engine displacement 38.2 m³
Maximum engine power 1.4 kw
Engine speed 8500 r/min
Engine idling speed 3000±300 r/min
Maximum chain speed 19.3 m/s
Spark plug TORCH L7T
Carburetor Diaphragm type
Volume of fuel tank 310 ml
Petrol and oil mix ratio Petrol 40: oil 1
Volume of oil tank 220 ml
Oil feeding system Automatic pump with adjuster
Guide Bar 16″
Saw Chain 16″
Chain pitch 3/8″
Chain gauge 0.050″
Sprocket 6 Teeth
Mass(without guide bar and chain and with empty tank) 5.8 kg
Guaranteed sound power level, LWA (2000/14/EC) LwA: 117 dB(A)
Tested sound pressure level, LPA (2000/14/EC) LpA: 95.3 dB(A), k=3 dB(A)
Vibration at Front Handle A front_hv, eq: 5.013 m/s², k=1.5 m/s²
Vibration at Rear Handle A rear_hv, eq: 5.446 m/s² , k=1.5 m/s²
Fuel consumption at max. engine power 0.75 kg/h
