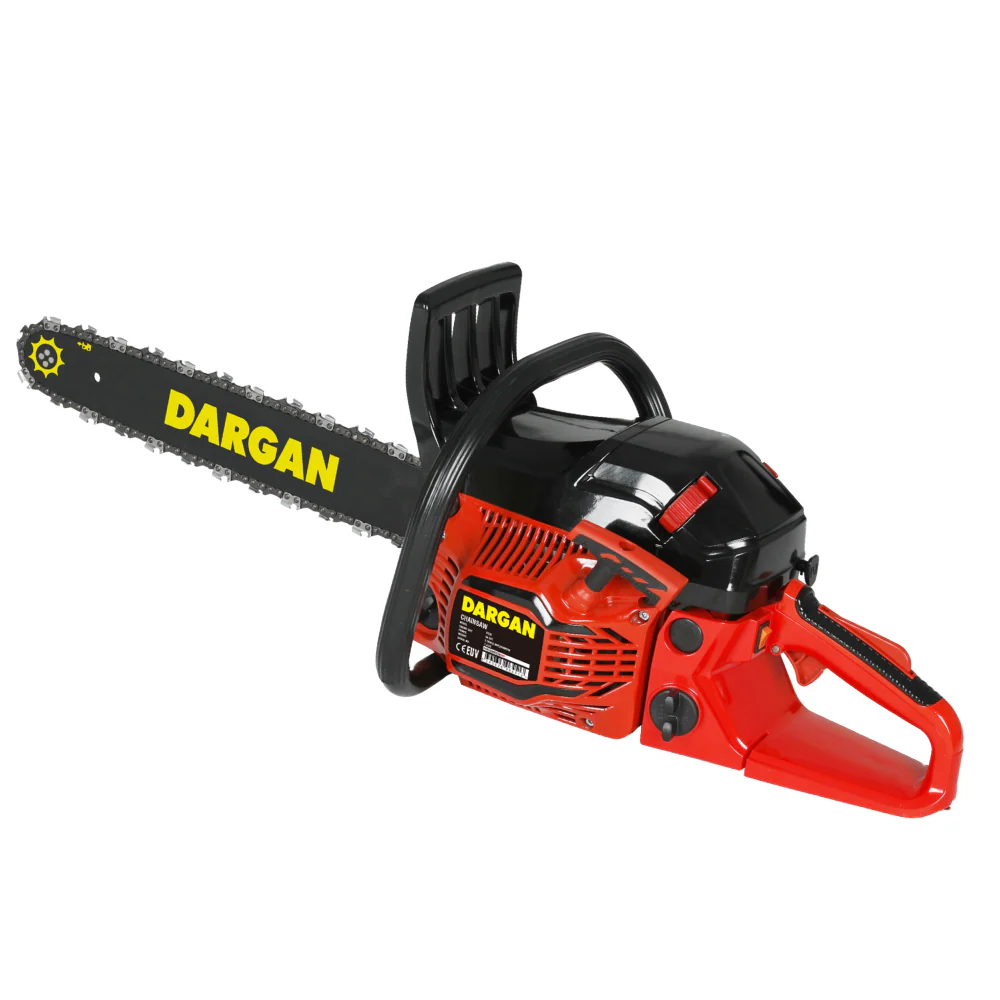

Chainsaw CS5800 Specifications
Model no. DG38
Engine type TT-1E45.2F (air-cooled, 2-stroke)
Equipment mobility Hand-held
Engine displacement 54.5 m³
Maximum engine power 2.3 kw
Engine speed 8500 r/min
Engine idling speed 3000±300 r/min
Maximum chain speed 19.3 m/s
Spark plug Champion CJ6Y
Carburetor Diaphragm type
Volume of fuel tank 550 ml
Petrol and oil mix ratio For the first 10 hours of machine use, please use a petrol/oil
mixture ratio of 25:1, and after 10 hours, please use a petrol/oil
mixture ratio of 40:1.
Volume of oil tank 260 ml
Oil feeding system Automatic pump with adjuster
Guide Bar 20″
Saw Chain 20″
Chain pitch 0.325″
Chain gauge 0.058″
Sprocket 7 Teeth x 8.255 mm
Mass(without guide bar and chain and with empty tank) 7.5 kg
Guaranteed sound power level, LWA (2000/14/EC) LwA: 117 dB(A)
Tested sound pressure level, LPA (2000/14/EC) LpA: 102 dB(A), k=3 dB(A)
Vibration at Front Handle A front_hv, eq: 9.41 m/s², k=1.5 m/s²
Vibration at Rear Handle A rear_hv, eq: 8.80 m/s² , k=1.5 m/s²
Fuel consumption at max. engine power 1.18 kg/h
